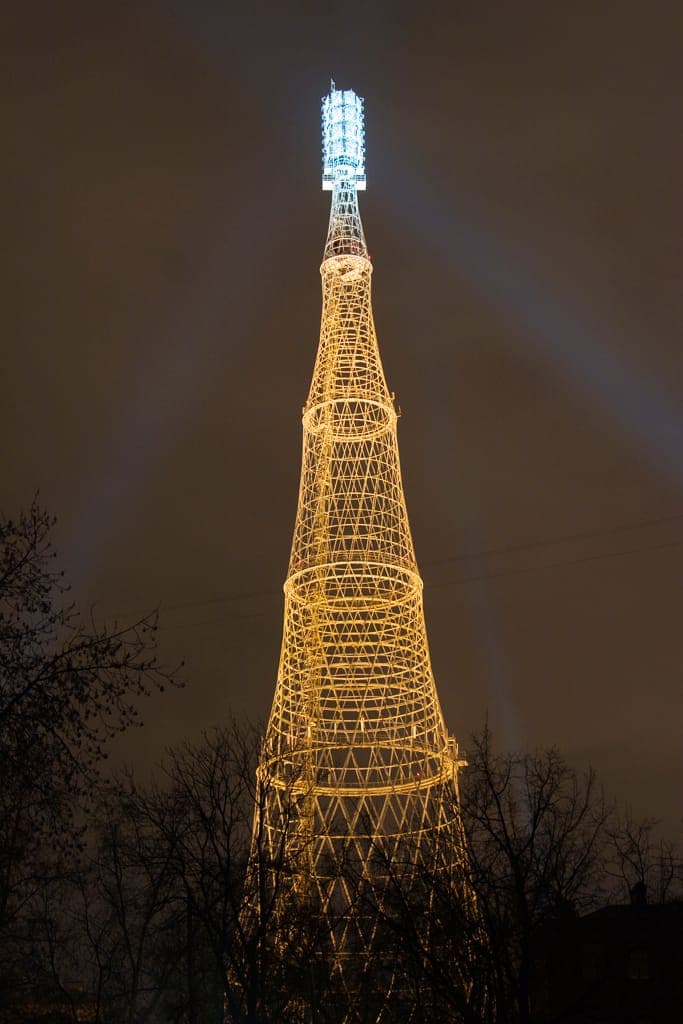

Shukhov Tower
A 160 m hyperboloid steel lace that broadcast Soviet radio for 80 years — engineering disguised as filigree.
Why this matters
- Six stacked hyperboloid sections, each a single-curvature ruled surface
- Designed for 350 m height; cut to 160 m due to steel shortage
- Inspired by Shukhov's earlier water tower for the 1896 Nizhny Novgorod exhibition
- Now under restoration after years of neglect
